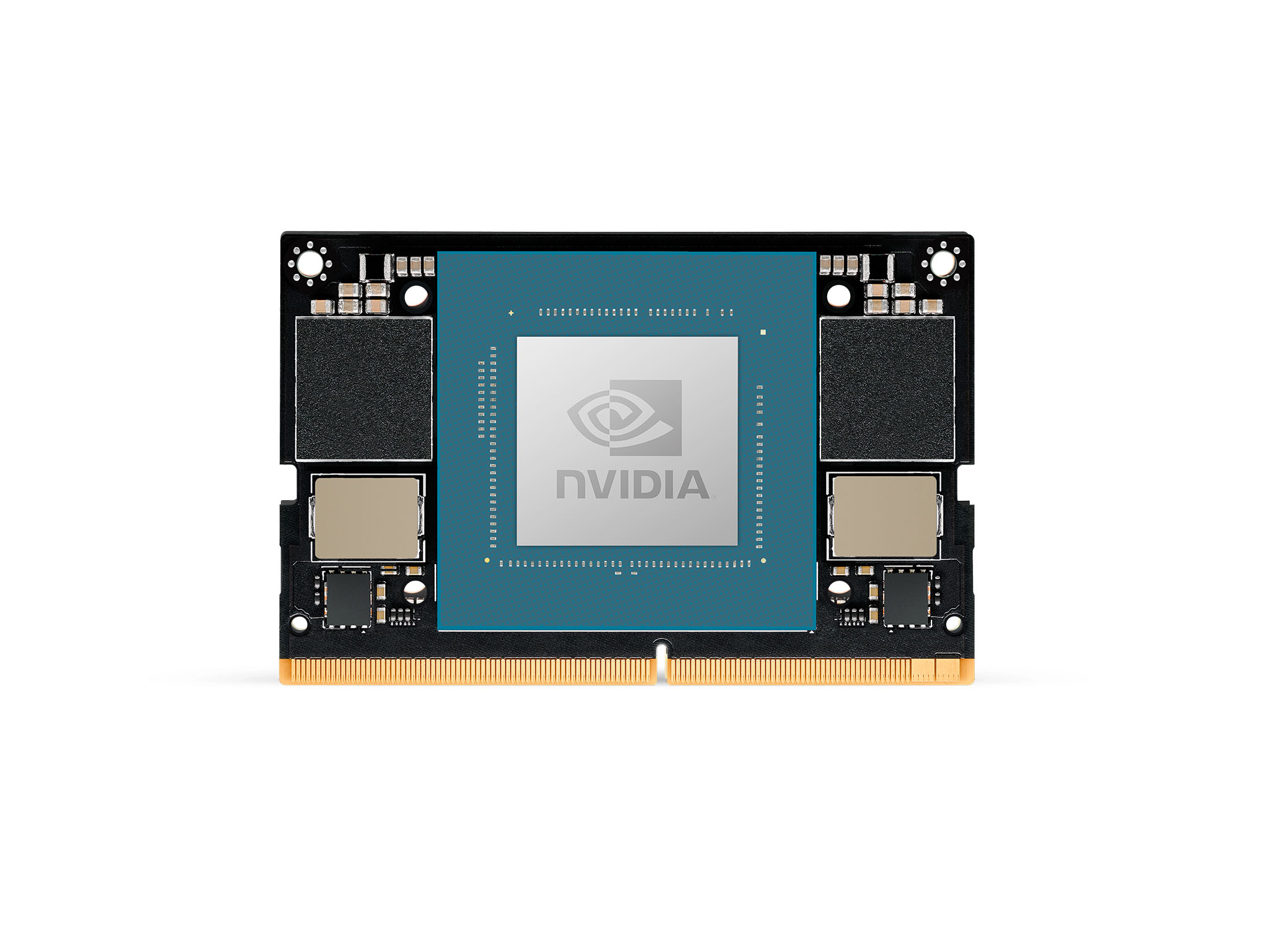

Jetson Orin Nano Series
NVIDIA® Jetson Orin™ Nano series modules deliver up to 67 TOPS of AI performance in the smallest Jetson form-factor, with power options between 7 W and 25 W. This gives you up to 140x the performance of NVIDIA Jetson Nano™ and sets the new baseline for entry-level edge AI.
Technical specifications
| Specification | Jetson Orin Nano 8GB | Jetson Orin Nano 4GB |
|---|---|---|
| AI performance | 67 TOPS | 34 TOPS |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | 512-core NVIDIA Ampere GPU with 16 Tensor Cores |
| CPU | 6-core Arm Cortex-A78AE v8.2 64-bit, 1.5 MB L2 + 4 MB L3 | 6-core Arm Cortex-A78AE v8.2 64-bit, 1.5 MB L2 + 4 MB L3 |
| Memory | 8 GB 128-bit LPDDR5, 102 GB/s | 4 GB 64-bit LPDDR5, 51 GB/s |
| Storage | No onboard storage, supports external NVMe | No onboard storage, supports external NVMe |
| Power | 7 W – 25 W (7 / 15 / 25 W modes) | 7 W – 25 W (7 / 10 / 25 W modes) |
| Connector | 260-pin SO-DIMM | 260-pin SO-DIMM |
| Dimensions | 69.6 mm x 45 mm | 69.6 mm x 45 mm |
These are the values in NVIDIA's current specification table, which labels them as Super performance; the introduction of the same page still quotes up to 40 TOPS at 7–15 W.
Source: NVIDIA – Jetson Orin
